Teach me about alternators for the C5 A6...
Thread Starter
AudiWorld Member
Joined: Oct 2009
Posts: 302
Likes: 0
I actually think I'll have enough room to being it out from under the car, at least that's what the Bentley seems to be showing.
The third bolt I'm talking about is exactly in line with the front long bolt. The Bentley refers to it as a counter hold and makes it look like you need to hold that (to keep it from spinning) while removing/installing the long top bolt from the front. I didn't have to hold it to remove that bolt BUT, man that thing is in there tight! I'm thinking I'll have to hammer it out if there with a rubber mallet. Guess I'll give that a go tomorrow.
Any tips removing the connectors on the back of it? Are the wires long enough to pull it out a bit before removing them? Or is this another blind thing that you do by feel? Anyone know the bolt size for the one connector that looks like it's screwed down to the center rear of the alternator?
The third bolt I'm talking about is exactly in line with the front long bolt. The Bentley refers to it as a counter hold and makes it look like you need to hold that (to keep it from spinning) while removing/installing the long top bolt from the front. I didn't have to hold it to remove that bolt BUT, man that thing is in there tight! I'm thinking I'll have to hammer it out if there with a rubber mallet. Guess I'll give that a go tomorrow.
Any tips removing the connectors on the back of it? Are the wires long enough to pull it out a bit before removing them? Or is this another blind thing that you do by feel? Anyone know the bolt size for the one connector that looks like it's screwed down to the center rear of the alternator?
Thread Starter
AudiWorld Member
Joined: Oct 2009
Posts: 302
Likes: 0

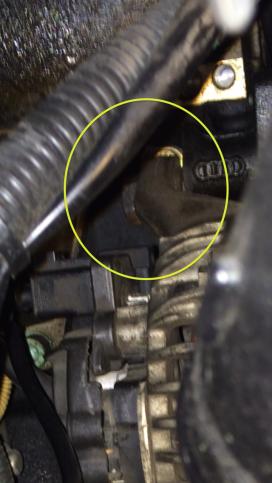

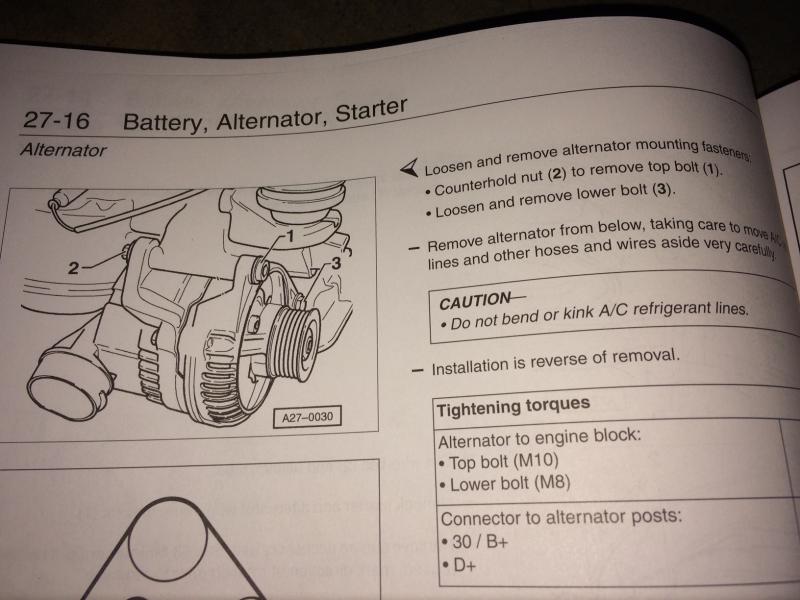

First image is a wide shot with my bolt highlighted, second image is a closer shot of the bolt and why to me at least it looks like it's securing the alternator to the mounting bracket or whatever. The third is what the Bentley says....
If it really is just part of the bracket and not a separate thing that needs loosened or removed, I'll start using some force with the alternator...
If it really is just part of the bracket and not a separate thing that needs loosened or removed, I'll start using some force with the alternator...
Tech Guru
Joined: Oct 2002
Posts: 8,009
Likes: 191
From: Olney, MD
I actually think I'll have enough room to being it out from under the car, at least that's what the Bentley seems to be showing.
The third bolt I'm talking about is exactly in line with the front long bolt. The Bentley refers to it as a counter hold and makes it look like you need to hold that (to keep it from spinning) while removing/installing the long top bolt from the front. I didn't have to hold it to remove that bolt BUT, man that thing is in there tight! I'm thinking I'll have to hammer it out if there with a rubber mallet. Guess I'll give that a go tomorrow.
Any tips removing the connectors on the back of it? Are the wires long enough to pull it out a bit before removing them? Or is this another blind thing that you do by feel? Anyone know the bolt size for the one connector that looks like it's screwed down to the center rear of the alternator?
The third bolt I'm talking about is exactly in line with the front long bolt. The Bentley refers to it as a counter hold and makes it look like you need to hold that (to keep it from spinning) while removing/installing the long top bolt from the front. I didn't have to hold it to remove that bolt BUT, man that thing is in there tight! I'm thinking I'll have to hammer it out if there with a rubber mallet. Guess I'll give that a go tomorrow.
Any tips removing the connectors on the back of it? Are the wires long enough to pull it out a bit before removing them? Or is this another blind thing that you do by feel? Anyone know the bolt size for the one connector that looks like it's screwed down to the center rear of the alternator?
The second bolt is just a bolt, threads into the alternator IIRC.
As for getting it out to get to the electrical connections..I can only advise you to disconnect the battery before messing around with high amperage connections that could touch as the alt comes out/down. On my 4.2 the wires WERE long enough to remove the alternator enough to get to them…I disconnected the light gauge wires first and the heavy red wire last.
Thread Starter
AudiWorld Member
Joined: Oct 2009
Posts: 302
Likes: 0
There are only two bolts. One is the long one…counterhold means to hold the nut with a wrench and turn the bolt…looks like the bolt is a socket heat, probably about 10mm?
The second bolt is just a bolt, threads into the alternator IIRC.
As for getting it out to get to the electrical connections..I can only advise you to disconnect the battery before messing around with high amperage connections that could touch as the alt comes out/down. On my 4.2 the wires WERE long enough to remove the alternator enough to get to them…I disconnected the light gauge wires first and the heavy red wire last.
The second bolt is just a bolt, threads into the alternator IIRC.
As for getting it out to get to the electrical connections..I can only advise you to disconnect the battery before messing around with high amperage connections that could touch as the alt comes out/down. On my 4.2 the wires WERE long enough to remove the alternator enough to get to them…I disconnected the light gauge wires first and the heavy red wire last.
I think it's 8mm hex but I can't get a hex key into it or a hex socket into it because there isn't enough clearance. It's 20mm to fit something over it, which I can get a 20mm socket over it but can't connect the socket to anything because no clearance. And I've only got a spanner up to 18mm so that's why I was going to try to go by an offset 20mm one...
Though like I said, didn't have to hold it at all to remove the bolt and the thing doesn't move a bit when I fuss with the alternator and move it a little...
AudiWorld Member
Joined: Sep 2010
Posts: 276
Likes: 1
Any tips removing the connectors on the back of it? Are the wires long enough to pull it out a bit before removing them? Or is this another blind thing that you do by feel? Anyone know the bolt size for the one connector that looks like it's screwed down to the center rear of the alternator?
There's enough slack to remove the connections once you're able to get the alternator angled better to have a go at them. The electrical connector is like many of the other connectors(headlights, coolant temp sensor etc) where you have to pull up the tab on it, and then pull the connector off.
Of course make sure the battery is disconnect first..
AudiWorld Member
Joined: Sep 2010
Posts: 276
Likes: 1
Good call on the battery disconnect, I pulled the black wire from it before I even got the car on jack stands, should I remove the other too?
I think it's 8mm hex but I can't get a hex key into it or a hex socket into it because there isn't enough clearance. It's 20mm to fit something over it, which I can get a 20mm socket over it but can't connect the socket to anything because no clearance. And I've only got a spanner up to 18mm so that's why I was going to try to go by an offset 20mm one...
Though like I said, didn't have to hold it at all to remove the bolt and the thing doesn't move a bit when I fuss with the alternator and move it a little...
I think it's 8mm hex but I can't get a hex key into it or a hex socket into it because there isn't enough clearance. It's 20mm to fit something over it, which I can get a 20mm socket over it but can't connect the socket to anything because no clearance. And I've only got a spanner up to 18mm so that's why I was going to try to go by an offset 20mm one...
Though like I said, didn't have to hold it at all to remove the bolt and the thing doesn't move a bit when I fuss with the alternator and move it a little...
I didn't have anything securing mines other than the two bolts and electrical connections secured to it.
Try rocking it side to side, push it up, then pull it down to kinda walk it off of the mount.
Tech Guru
Joined: Oct 2002
Posts: 8,009
Likes: 191
From: Olney, MD
I forgot..you have to release the serp belt from the alternator. Sounds obvious, but you pic looked like the belt was still on there.
On the 4.2 all I had to do was pull down on the bottom run of the serp belt until the tensioner moved up enough to put an allen wrench into the hole and lock the tensioner up so I could move the serp belt out of the way. YMMV.
On the 4.2 all I had to do was pull down on the bottom run of the serp belt until the tensioner moved up enough to put an allen wrench into the hole and lock the tensioner up so I could move the serp belt out of the way. YMMV.
