Trunk Lock Replacement

Reply




LinkBack Thread Tools Search this Thread
Old 11-14-2011, 07:55 AM   #1
AudiWorld Member

05SilverA8's Avatar

Join Date: Mar 2009
Location: San Francisco Bay Area
Posts: 306
Default Trunk Lock Replacement

I wrote up a quick fix for the trunk lock issue that causes a lot of grief and is relatively easy and inexpensive to fix.


Instructions for replacing your upper trunk latch.


This resolves issues with having to slam trunk to get it to latch and having the trunk close and then re-open when you press the close button. The trunk latch was known to be defective and has been re-designed. This same part is used on the A4,A5,A6, Jetta and Passat.


Time required less than 1 hour.
Tools

Required Tools:
Torx 25 driver
Phillips screwdriver
Small flat blade driver
Plastic pry tool/putty knife or other instrument
10mm socket driver (not pictured)

1) Order part number 4F5 827 505 D Lock from the online or from the dealer. Cost is about $45 online $68 from dealer


Part
2) If you go to the dealer pick up an extra metal clip that is used on the trunk trim that you will be pulling off. They get lost very easily.

3) Pry off cover of emergency release to get to Torx 25 screw on emergency release handle


ERelease



4) On the other side on the handle pull there is a small plastic door that when opened will reveal two Phillips screws that secure the
other handle lift to trunk.


Notice picture is taken from sitting inside the trunk.


Pull


5) Take out tool kit 4 Phillips with plastic covers, and pull off black plastic cover over trunk lock


TrunkTool


6) Pry off back panel using plastic tool and pulling. Red indicated approximate position of clips


Lid

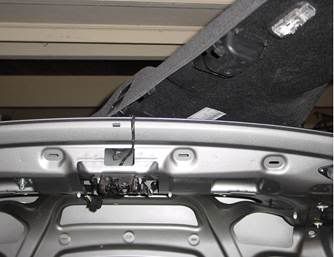

7) Disconnect trunk light wire harness. Place trunk liner out of way.


deck


8) Disconnect connector to trunk release and remove 2 10mm nuts, note position of emergency release and lock cables.Remove lock cable first (cable coming from right bottom in picture). Unbolt unit and then slide emergency release cable out.

motor


9) Remove and replace motor assemble, and replace BOTH cables the same order as you took them out. Remember to replace flat plastic cover over release cables. Test emergency release and key by license plate before replacing panel.

NewPart

10) Put back together and enjoy a working trunk lock!




Last edited by 05SilverA8; 11-14-2011 at 08:05 AM.
05SilverA8 is offline   Reply With Quote
Old 11-17-2011, 09:35 AM   #2
AudiWorld Super User

Brozee's Avatar

Join Date: Jan 2010
Location: Michigan
Posts: 2,008
Default

My trunk just went into "winter mode" where it won't latch anymore. Doesn't even try to latch, the motor doesn't even sound like it tries. So is this what will fix it you are saying? Also do you notice a physical difference in the old lock vs the new one that you got?
Brozee is offline   Reply With Quote
Old 11-17-2011, 12:31 PM   #3
AudiWorld Member

05SilverA8's Avatar

Join Date: Mar 2009
Location: San Francisco Bay Area
Posts: 306
Default Trunk Lock

Yes, you can hear the latch when the trunk shuts. The trunk is back to operating correctly after lubricating the hinges and fixing the lock. The whole procedure takes less than an hour, is relatively easy and well worth it if you are having trunk lock issues. Slamming the trunk down hard several times is not the correct way to treat the car.
05SilverA8 is offline   Reply With Quote
Old 11-17-2011, 04:56 PM   #4
AudiWorld Super User

Brozee's Avatar

Join Date: Jan 2010
Location: Michigan
Posts: 2,008
Default

I could manually move the lock mechanism with the trunk open but no matter how hard or how I shut the trunk the lock won't engage. It's currently sitting trunk unlocked unfortunately. I just want to make sure if I do the replacement of the lock as the OP said that it will in fact work and the lock will engage regardless of temperature.
Brozee is offline   Reply With Quote
Old 11-17-2011, 07:14 PM   #5
AudiWorld Member

05SilverA8's Avatar

Join Date: Mar 2009
Location: San Francisco Bay Area
Posts: 306
Default

The lock unit was re-designed so hopefully it will work in the cold now.
05SilverA8 is offline   Reply With Quote
Old 11-18-2011, 02:45 AM   #6
AudiWorld Super User

Mister Bally's Avatar

Join Date: Jan 2006
Location: Detroit, Michigan USA
Posts: 3,822
Default

When i took mine apart and lubed it with MBI Instrument grease, it worked fine from then on. Minr failed away from home so the trunk coontents went into the back seat. German engineering.
Mister Bally is offline   Reply With Quote
Old 11-18-2011, 05:00 AM   #7
AudiWorld Super User

jakematic's Avatar

Join Date: Feb 2011
Location: NC USA
Posts: 2,883
Default

Beginning to wonder if mine is locking or not - have never heard any noticeable "latch" sound.

I know it's turned on in MMI but have never tested it.

Other than not having the key with you and trying it is there any way to know if it's actually locked ?
__________________
2012 A8L 4.2 Oolong/Titanium. Premium, LED, Driver assist, Rear seat comfort, Dual pane, Alcantara, Panorama

jakematic is offline   Reply With Quote
Old 11-18-2011, 06:54 AM   #8
AudiWorld Member

05SilverA8's Avatar

Join Date: Mar 2009
Location: San Francisco Bay Area
Posts: 306
Default

Just pull up on the trunk and it will pop open if it does not close properly. This makes for a very unsafe situation for storing anything valuable in the trunk. Lubrication may solve the problem for a few minutes, but something else in the latch goes bad. It is well worth just fixing the problem for good.
05SilverA8 is offline   Reply With Quote
Old 11-19-2011, 03:51 PM   #9
AudiWorld Super User

Join Date: Jan 2001
Location: Atlanta
Posts: 4,737
Default

Thanks for the DIY write-up. It worked great, but for one thing:

The M5 screw holding the emergency handle on has red-loctite on it. I was using a M25 torx safety bit on it. It twisted it.
So I go get my heavy duty M25 Torx. It snapped the head of the screw off.
so I go buy a screw extractor and drill into the remaining body of the screw. Then the screw extractor snaps. Mother @$$^%^^&*!!!!

So I'm kind of stuck now. The trunk latch is replaced and works fine now, so that's most important. That perfectionist is a little nonplused though since I can't put that handle back on. I might just superglue it on since it fits over a decent-sized hex. Grrrr.

Thanks again.
__________________
His: 2005 A8L | Oyster Gray/Amaretto
Sport Pkg, Convenience Pkg | BlueTooth | Sirius | VCDS Lowered-20mm Front/14mm Rear | Forge Wheel Spacers-11mm Front/16mm Rear
Hers: 2007 A4 2.0TQ Convertible | Ibis White/Cardamom Beige
Heritage: '00 A8 SWB, '01 allroad 2.7t, '00 S4 stg2+, '97 A4 2.8, '96 A4 2.8, '86 GT Coupe

AudiOx is offline   Reply With Quote
Old 11-19-2011, 10:03 PM   #10
AudiWorld Super User

mishar's Avatar

Join Date: Nov 2010
Location: Vancouver, Canada
Posts: 5,845
Default

Take ceramic drill bit 4mm, drill extractor and rest of that bolt and clean the tread with M5 tap. Carefully. Don't brake that too. Though ceramic drill can drill it.
mishar is offline   Reply With Quote
Old 11-20-2011, 06:14 AM   #11
AudiWorld Super User

jakematic's Avatar

Join Date: Feb 2011
Location: NC USA
Posts: 2,883
Default

Quote:
Originally Posted by 05SilverA8 View Post
Just pull up on the trunk and it will pop open if it does not close properly. This makes for a very unsafe situation for storing anything valuable in the trunk. Lubrication may solve the problem for a few minutes, but something else in the latch goes bad. It is well worth just fixing the problem for good.
Thanks. Looks like mine is functional, have just never noticed the lock sound.
__________________
2012 A8L 4.2 Oolong/Titanium. Premium, LED, Driver assist, Rear seat comfort, Dual pane, Alcantara, Panorama

jakematic is offline   Reply With Quote
Old 11-20-2011, 07:44 AM   #12
AudiWorld Super User

Join Date: Jan 2001
Location: Atlanta
Posts: 4,737
Default

Thanks. I'll work on it at some point. Currently I have to drill out not only the remaining M5 screw, but also the piece of the extractor that's stuck in there. I'm sure that will drill out easily....lol. Good luck getting a hole in the center.
__________________
His: 2005 A8L | Oyster Gray/Amaretto
Sport Pkg, Convenience Pkg | BlueTooth | Sirius | VCDS Lowered-20mm Front/14mm Rear | Forge Wheel Spacers-11mm Front/16mm Rear
Hers: 2007 A4 2.0TQ Convertible | Ibis White/Cardamom Beige
Heritage: '00 A8 SWB, '01 allroad 2.7t, '00 S4 stg2+, '97 A4 2.8, '96 A4 2.8, '86 GT Coupe

AudiOx is offline   Reply With Quote
Old 11-20-2011, 03:06 PM   #13
AudiWorld Member

05SilverA8's Avatar

Join Date: Mar 2009
Location: San Francisco Bay Area
Posts: 306
Default Broken Screw & EZ-Out

Sorry to hear about broken screw, perhaps some readers could help on how to extract the broken EZ-Out. Mine did have some locking sealant on it that was blue. I am sure that securing the handle with an adhesive would serve it's purpose quite well. I have never even looked at the handle besides removing it to replace the trunk lock.
05SilverA8 is offline   Reply With Quote
Old 01-15-2014, 02:58 PM   #14
Audiworld Junior Member

Join Date: Jan 2014
Posts: 12
Default

Hi guys.

I am having very similar issues. My soft close boot mechanism is not working. I have to slam the boot a few times for the latch to engage.

I thought the part I need is a striker plate with motor http://www.partscats.info/audi/en/?i...ail_id=1242145

but this thread suggests it's actually the latch on the boot lid?

Why would the boot latch prevent the striker plate + motor activating?

Does the boot latch on the boot lid have any electrics?
a8star is offline   Reply With Quote
Old 01-24-2014, 09:46 AM   #15
Audiworld Junior Member

Join Date: May 2013
Posts: 20
Default

Quote:
Originally Posted by a8star View Post
Hi guys.

I am having very similar issues. My soft close boot mechanism is not working. I have to slam the boot a few times for the latch to engage.

I thought the part I need is a striker plate with motor http://www.partscats.info/audi/en/?i...ail_id=1242145

but this thread suggests it's actually the latch on the boot lid?

Why would the boot latch prevent the striker plate + motor activating?

Does the boot latch on the boot lid have any electrics?

I'm having the same problem it would appear.

One day my boot lid decided to fail to latch. It then worked on and off for a week or so (though with more force than should be required). Having read similar advice to above on various Audi forums I ordered a new latch for the boot lid. I replaced it and guess what, still not working. It does latch now but requires a good slam (I don't like that.)

I'm guessing that the part you have linked to here is probably the part that I need.

What does it do exactly? Does it move the striker up so that it latches, then pull it back down again? My motor makes a noise when I open the boot but I can't see anything moving. There is no noise from the motor when I close the boot lid.
crm297 is offline   Reply With Quote
Old 01-27-2014, 05:14 AM   #16
Audiworld Junior Member

Join Date: Jan 2014
Posts: 12
Default

Hey guys we need some help here. Bump Bump
a8star is offline   Reply With Quote
Old 01-27-2014, 08:04 AM   #17
AudiWorld Member

2k6blacka8's Avatar

Join Date: Sep 2013
Location: Akron, Ohio
Posts: 295
Default

I had the same problem when I bought my 05 when it would latch sometimes but most of the time it wouldn't. I was going to buy a new one but I decided to take the latch off and Wd-40'ed the crap out of it for like 10 minutes and I latched and unlatched it from the latch button as I was lubing it until it got better and I made sure it won't go bad again. I reinstalled the latch on the car and put everything back together and have had no problems since. Latches like new as it came from the factory. I always do the simple cheap stuff first before spending money so it's worth a shot.
__________________
2006 Brilliant Black On Mojave Sand A8L-Garage Queen
-Exclusive Package With Valcona Leather Seats W/Black Piping, and Leather Door Inserts
-Premium Package
-Ventilated And Massaging Seats
-Dual Pane Glass
-Rear Seat Lumbar And Rear Digital Climate Control
-Leather Console And Door Panels
-Wood Steering Wheel And Wood Shift ****
-Skibag Rear Seat Pass Through
-19" 12 Spoke Wheels

Former D3's Sold But Not Forgotten
-2004 Black On Black A8L Sold at 113K Miles-1st Audi Ever Owned
-2005 Black On Black/Amaretto A8L Sold At 77K Miles-2nd One Owned
-2006 Black On Amaretto A8L Sold At 88K miles-3rd One Owned

Current Daily Driven Vehicles
-2002 True Blue Ford F150 XLT 4x4 Super Cab-Used For Play And Occasional Light Hauling(Primary Driver)
-2002 Oxford White Ford F150 XLT 4x4 Super Cab-Used For Heavy Hauling, And Towing
2k6blacka8 is offline   Reply With Quote
Old 01-27-2014, 08:53 AM   #18
AudiWorld Super User

mishar's Avatar

Join Date: Nov 2010
Location: Vancouver, Canada
Posts: 5,845
Default

Quote:
Originally Posted by a8star View Post
Hi guys.

I am having very similar issues. My soft close boot mechanism is not working. I have to slam the boot a few times for the latch to engage.

I thought the part I need is a striker plate with motor http://www.partscats.info/audi/en/?i...ail_id=1242145

but this thread suggests it's actually the latch on the boot lid?

Why would the boot latch prevent the striker plate + motor activating?

Does the boot latch on the boot lid have any electrics?
It also could be the small spring in the bottom part broken. If you open it you will see it. It is easy to fix.
mishar is offline   Reply With Quote
Old 01-27-2014, 11:03 AM   #19
AudiWorld Newcomer

Join Date: Jan 2012
Location: Chicago area
Posts: 8
Send a message via Skype™ to smithrd8003
Default Trunk Lock Replacement

For what it's worth...
Mine was intermittently working.

Symptom:
Close trunk lid manually (my car is manual) and when lid makes contact with motorized latch on body nothing happens - no motor sound.. nothing. Lid will not latch and squeeze tight.

Researched forum and others and then went to dealer for the likely needed part. Parts person at dealer agreed it was the lid latch assembly. He claimed there is a chip integrated within that is necessary. WOW! ReallY?

I installed new assembly into trunk lid and then dissected the old part and found nothing electronic looking whatsoever.

Disposition: New lid latch assembly FIXED the symptom.
Cost from dealer: Lid latch assembly - $62 USD including tax.

Since then, I saw Mishar's note below and checked that too as a precaution. Yes, there is a spring and if broken could cause the same symptom. Wasn't true in this instance however, it is VERY ECONOMICAL fix if it's the problem.

Quote:
Originally Posted by mishar View Post
It also could be the small spring in the bottom part broken. If you open it you will see it. It is easy to fix.
smithrd8003 is offline   Reply With Quote
Old 01-27-2014, 11:13 AM   #20
AudiWorld Member

03_AR_CO's Avatar

Join Date: Jul 2006
Location: Colorado
Posts: 264
Default

Quote:
Originally Posted by smithrd8003 View Post
For what it's worth...
Mine was intermittently working.

Symptom:
Close trunk lid manually (my car is manual) and when lid makes contact with motorized latch on body nothing happens - no motor sound.. nothing. Lid will not latch and squeeze tight.

Researched forum and others and then went to dealer for the likely needed part. Parts person at dealer agreed it was the lid latch assembly. He claimed there is a chip integrated within that is necessary. WOW! ReallY?

I installed new assembly into trunk lid and then dissected the old part and found nothing electronic looking whatsoever.

Disposition: New lid latch assembly FIXED the symptom.
Cost from dealer: Lid latch assembly - $62 USD including tax.

Since then, I saw Mishar's note below and checked that too as a precaution. Yes, there is a spring and if broken could cause the same symptom. Wasn't true in this instance however, it is VERY ECONOMICAL fix if it's the problem.
Same for me when I experienced this issue, replaced the lid latch assembly and all is fair with the universe since then. As suggested easy fix.
__________________
Current:

2006 A8L W12 Black/Black
2004 A8L Atlas Gray Metalic
2001 TT 225 Silver


From the past:

2003 allroad Burgundy
1997 A6Q Avant Black
1996 A6Q Avant Pearl White
1991 200CS Q Gold
1987 5000S Gold
1986 4000S Black
1984 5000CS Q Avant Blue
03_AR_CO is offline   Reply With Quote
Old 01-27-2014, 11:13 AM
AudiWorld
Audi R8




Paid Advertisement



Reply

Tags
2005, 97, a4, a8, a8l, audi, emergency, fix, latch, location, lock, quick, release, replacement, trunk

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -8. The time now is 03:49 AM.


Copyright 2014 AudiWorld.com Audi Enthusiast Community
